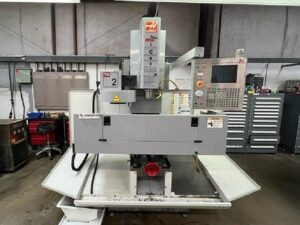

2007 Haas TM-2 VMC
Travel 40” x 16” x 16”
4,000 RPM
7.5 HP
40 Taper
Clean machine
Coolant System
208-240 volts 3 Phase
Also can run on Single Phase
No tooling or vices
Showing 13–24 of 43 resultsSorted by latest
-
-
-
-
2021 Hyundai WIA KF5600-ii
2021 Hyundai Wia Mdl. KF5600II CNC Vertical Machining Center
Touch Screen Fanuc CNC Controls
ONLY 607 HOURS
Cat 40
12,000 RPM Spindle
Renishaw Probe System
High Pressure Coolant System
25 H.P Motor

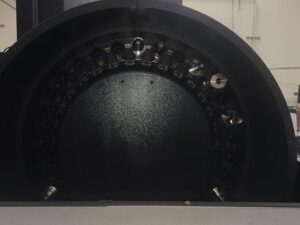

30 Station Side Mount ATC
Chip Auger
Through Spindle Coolant
X Travel 43.3”
Y Travel 22”
Z Travel 20.5” -
2023 Haas VF-3 CNC Vertical Milling Center
15” Color LCD Monitor, USB, 1 GB Memory option
Travels 40 x 20 x 25 and 20 Position Tool Changer
8100 RPM Spindle
Wired for 4th Axis & 5th Axis Drive
High Speed Machining
Chip Auger System
Wireless Intuitive Probing System, Renishaw
Dynamic Work Offset and Tool Point Control Software
Programmable Coolant Nozzle
Automatic Air Gun
Minimum Quality Lubrication System
Pulsejet System
Coordinate Rotation & Scaling and Visual Part Programming System
Spindle Orientation & User Definable Macros

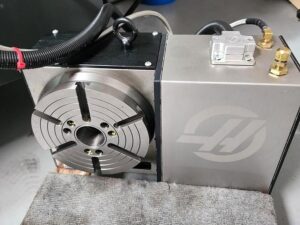

Haas HRT-210HT 4th Axis Rotary – High-Torque
300 PSI Through Spindle Coolant
New price as Equipped is over $137,000.00 -
2023 Haas Mdl UMC-500 5 Axis
Description
UMC 500
15,000 RPM, 30 HP, 40 taper, direct drive spindle
50 tool side mount tool changer
chip tray filter kit
Through spindle coolant ready
Chip Disk Filtration Conveyor
Automatic coolant refill
95 gallon coolant tank
High Speed Machining
coolant tank oil skimmer
32 GB expanded memory
anchoring kit (unused)
Power on time: 2796:41:36
Cycle Start Time: 363:28:46
Feed Cutting Time: 239:31:51 -
2017 TSUGAMI SS207-II
(2) 2017 TSUGAMI SS207-II WITH
IMG 250LS LASER CUTTNG SYSTEM
COMING SOON! CONTACT FOR PRICE AND MACHINE SPECS!
ONLY 2 IN BAY AREA!
B-axis Swiveling Tool Spindle can machine virtually any angle
B-axis Live Tools (three front, three rear) create sculpted shapes
Simultaneous 5-Axis Machining with CAD/CAM
B-axis Control enables thread whirling or hobbing without dedicated attachments
Modular Tool Zone, cartridge-type live cross and face tools, main and sub spindle
Fanuc 31i-B5 CNCInformation:
The Tsugami SS207-II-5AX Swiss Type Lathe with B-Axis is a high-performance turning center that performs continuous live cutting using a Servo-driven B-axis. The live tools mounted on the B-axis (three front, three rear) machine in coordination with the C-axis, delivering the ability to cut precise angles and sculpted contours. The swiveling B-axis transforms this Swiss type lathe into a multitasking turning center that can drill, tap and end mill any angle.
The modular tool zone makes it easy to change cartridge-type live cross and face tools in either the main or sub spindle, decreasing changeover time. Multiple angle cuts by the same tool also decrease the total number of tools required. For machining complex shapes, this is the ultimate Swiss type lathe.
The Tsugami SS207-II-5AX CNC Lathe is CONVERTIBLE and may be run as a traditional sliding headstock Swiss Type Lathe using the guide bushing or run without the guide bushing with the addition of an optional chucker kit. When run as a chucker, the CNC Lathe can use drawn bar stock instead of centerless ground stock, dramatically reducing remnant size and increasing shop flexibility.
-
2007 Hurco Mdl. VM1 4TH Axis
2007 Hurco Mdl. VM1 4TH Axis CNC Vertical Machining Center, s/n H-V12289, MAX CNC Control, ONLY 2,000 CUTTING HOURS, Under Power, Rotary Table Included, Side Mount Tool Changer,
-
2023 MAZAK VARIAXIS 5 AXIS CNC W/ 2024 12 PALLET SYSTEM
2023 MAZAK VARIAXIS 5 AXIS CNC W/ 2024 12 PALLET SYSTEM
-
-
-
2022 Haas Mdl. VF6/50 CNC Vertical Machining Center
2022 Haas Mdl. VF6/50 CNC Vertical Machining Center
High-Performance 10,000-rpm Spindle, 50 taper, 60 hp (44.7 kW) vector drive, geared head;
requires balanced toolholders with G2.5 rating above 7000 rpm.OPTION, HIGH SPEED MACHINING – CODE ONLY
Through-Spindle Coolant, 300 psi (21 bar). Provides high-pressure coolant directly through
the cutting tool. Requires 3-phase power. Note: TSC cannot be installed in the field unless theTSC-READY option is ordered with the machine.
Machine Anchoring Kit; anchoring straps, hardware, tube brush, 5/8″ hammer drill bit, and
machine anchoring template.Chip Tray Filter Kit; supplemental chip strainer kit keeps chips from entering the coolant
system. Includes a 200-micron filter and metal chip tray basket.The Haas 4th-axis drive allows the use of a fully integrated 4th-axis Haas rotary table or
indexer for multi-sided machining.Wireless Intuitive Probing System; Renishaw. Includes the Haas Visual Programming
System, macros, spindle orientation, and coordinate rotation and scaling.
