MAJOR AMADA & HAAS 50,000 SQ FT. FABRICATION FACILITY LIVE WEBCAST AUCTION OF SCREEN-TECH INC.

Jan 26, 2021 8:00 AM

1415 Oakland Blvd. #200, Walnut Creek, CA, 94596;
Auction Type: Absolute Auction

Description of Property:
2013 Amada EMK 3612 M2 CNC Punch w/ MP1530 Robotic Load/Unload System, 2005 Amada EM2510 NT CNC Punch w/ MP1225 Robotic Load/Unload System, 2017 Amada ID40IV HP NT Spot Welder, (5) Haeger Insertion Presses, (7) Amada Press Brakes, 2013 Haas VF-6SS CNC VMC, 2005 Haas VF-2SS CNC VMC, 2003 Haas VF-3SS CNC VMC, 2006 Mazak 4,000 Watt Laser, Hyd-Mech S-20A Horizontal Band Saw, Amada Shear, 2005 Amada Togu III Die Grinder, Large Quantity of Press Brake Dies and Punch Tooling, Miller Welders, (3) Forklifts, (3) Trucks, Atlas Copco Air Compressors, Support Equipment, Faro Arm Platinum, Inspection, Tooling, Partial Listing.

Description:

CNC VERTICAL MACHINING CENTERS
Auction Inventory Photo

2013 HAAS VF-6SS CNC Vertical Machining Center, 12,000 RPM spindle, 30 HP motor, 40 taper, 40-tool ATC, chip auger, Haas CNC control, travels: X-64", Y-32", Z-30", s/n 1105600.

Auction Inventory Photo

2005 HAAS VF-2SS CNC Vertical Machining Center, 12,000 RPM spindle, 30 HP motor, 40 taper, 24-tool ATC, chip auger, Haas CNC control, travels: X-30", Y-16", Z-20", s/n 40215.

Auction Inventory Photo

2003 HAAS VF-3SS CNC Vertical Machining Center, 12,000 RPM spindle, 30 HP motor, 40 taper, 24-tool ATC, chip auger, Haas CNC control, travels: X-40", Y-20", Z-25", s/n 332953.

Auction Inventory Photo

2004 SHIZUOKA SV-4024 CNC Vertical Machining Center, 12,000 RPM spindle, 30 HP motor, 40 taper, 24-tool ATC, chip auger, Fanuc 18i-m control, travels: X-40", Y-24", Z-20.1", s/n N/A.

PRESS BRAKES
Auction Inventory Photo

2000 AMADA Astro 100 MH/FabIII-1253 CNC Press Brake, w/robot loader and bender, Mdl. FBDIII 1253 MH press brake, 138-ton cap., 118.1" bed length, 122" max. bending length, 15.7" throat depth, 5.9" stroke length, 106.3" distance between posts, AMNC RML 39BM 8-axis CNC control, foot control, Mdl. ERX1210 6-axis loader/unloader, Astro 100MH 5-axis bender, s/n 10302086.

Auction Inventory Photo

2000 AMADA FBD 1030NT Press Brake, 110-ton cap., 10', 118" max. bending length, 5.91" stroke, 15.7" throat depth, AMNC PC control, s/n 10300093.

Auction Inventory Photo

1994 AMADA RG-100 CNC Press Brake, 110-ton cap., 118.2" bed length, 122.1" max. bending length, 15.76" throat depth, 3.94" stroke length, 100.5" distance between housings, NC9-EXII CNC control, s/n 105027.

Auction Inventory Photo

1995 AMADA RG-80 CNC Press Brake, 88-ton cap., 82" max. bending length, 15.75" throat depth, 3.9" stroke length, 59.84" distance between housings, NC9-EXII CNC control, s/n 810770.

Auction Inventory Photo

1988 AMADA RG-80 CNC Press Brake, 88-ton cap., 82" max. bending length, 15.75" throat depth, 3.9" stroke length, 59.84" distance between housings, NC9-EX CNC control, s/n 808014.

Auction Inventory Photo

1986 AMADA RG-80 CNC Press Brake, 88-ton cap., 82" max. bending length, 15.75" throat depth, 3.9" stroke length, 59.84" distance between housings, NC9-EX CNC control, s/n 806910.

1985 AMADA RG-50 CNC Press Brake, 55-ton cap., 78.8" max. bending length, 15.75" throat depth, 3.9" stroke length, 59.84" distance between housings, NC9-EX CNC control, s/n 505566.

WYSONG H90-8 Press Brake, 90-ton cap., 10' max. bending length, 2-1/2" stroke length, 8'6" distance between housings, s/n HPB16-103.

Auction Inventory Photo

DI ACRO 14-72 Press Brake, 35-ton cap., 6" max. bending length, 9" throat depth, 2" stoke length, 62" distance between housings, foot control, s/n 6601178431.

CNC PUNCHES
Auction Inventory Photo

2013 AMADA EMK 3612 M2 CNC Turret Punch, 33-ton cap., 58-station turret, 4-auto. index, 1.45" stroke length, 1,800 SPM, 0.187" max. sheet thickness, 30 RPM turret rotation speed, travels: X-120", Y-60", brush table, Amada AMCN/PC control, s/n 36124026, 2013 Amada MP1530 robotic load/unload system.

Auction Inventory Photo

2005 AMADA EM 2510 NT CNC Turret Punch, 22-ton cap., 58-station turret, 1,800 SPM, AMCN-F CNC control, s/n 25100599, 2005 Amada MP1225NJ robotic load/unload system.

LASER CUTTING SYSTEM
Auction Inventory Photo

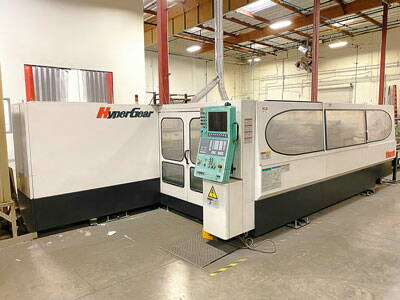

2006 MAZAK Hypergear 510 CNC Laser Cutting System, 4,000 watt laser, 5' x 10' table, linear drive w/flying optics positioning system, co2 resonator, (2) tables, Mazatrol preview CNC control, travels: X-120", Y-60", Z-3.9", s/n 180259 (new turbo 2017, Anti-Fire new 6 months ago).

INSERTION PRESSES
Auction Inventory Photo

2000 HAEGER 824 Window Touch Insertion Press, 900–16,000-lb. variable force range, Haeger bowl feeder, Haeger insertion logic window touch control, 24" throat depth, 0–8" stroke length, 5 HP motor s/n 8WT10569.

Auction Inventory Photo

2000 HAEGER 824 Plus Insertion Press, 900– 16,000-lb. variable force range, Haeger bowl feeder, 24" throat depth, 0–8" stroke length, 5 HP motor, s/n SPL00584.

HAEGER 824 Plus Insertion Press, 900–16,000-lb. variable force range, Haeger bowl feeder, 24" throat depth, 0–8" stroke length, 5 HP motor, s/n 689.

Auction Inventory Photo

HAEGER HP6-B Insertion Press, 200–12,000-lb. variable force range, 18" throat depth, 1/2"–8" stroke length, 1-1/2 HP motor, s/n 583.

AUTOSERT AS-7.5 Insertion Press, 7.5-ton, auto. feed w/control, 20" throat, 6" stroke, s/n N/A.

ROBOTIC WELDING CELL
Auction Inventory Photo

2006 Perform Arc Robotic Welding Cell, Panasonic YA-1 6-axis robotic welder, Panasonic YA-1UAR controller, 36" x 59" trunnion tables, 450 amp Miller auto. Axcess 450 welder, 8kg max. payload, s/n N/A.

WELDERS
Auction Inventory Photo

2017 AMADA ID40 IVHPNT Spot Welder, Amada PC touchscreen control, digital camera system for reference photos, 80 KVA, 30,000 max. welding current, 6 kN max. pressure, advanced inverter power supply, 7.8" throat gap, 23.6" throat depth, s/n 80460082.

H&H Press Type Spot Welder, 50 KVA, 24" throat, 6" gap, s/n H5025.

H&H Press Type Spot Welder, 100 KVA, 36" throat, 5" gap, s/n H5127R.

(2) MILLER Millermatic 252 Wire Feed Welders, s/n’s LJ350223B, LJ0112758.

MILLER Millermatic 250 Arc Welder, s/n KC233877.

MILLER Millermatic 350P Wire Feed Welder, s/n MG261361N.

MILLER Millermatic 215 Welder, s/n MJ011720N.

(2) MILLER Syncrowave 351 AC/DC Welders, s/n’s KF943826, KH513582.

(3) MILLER Syncrowave 350 LX AC/DC Welders, (1) w/TIGer Torch cooling system, (2) w/Bernard cooling systems, s/n’s KK190632, LA181832, KK265463.

Auction Inventory Photo

2018 MILLER Dynasty 400 Tig Welder, s/n MJ111371L.

LINCOLN Pro Cut 55 Wire Feed Welder, s/n U1990510488.

SHEAR
Auction Inventory Photo

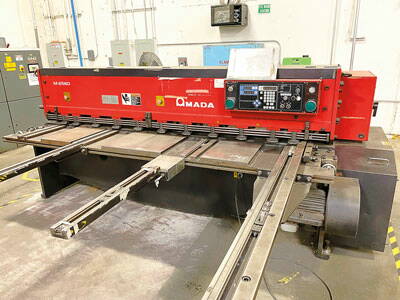

1996 AMADA M-2560 CNC Shear, 1/4" x 8' mild steel cap., 2-speed, (11) hydraulic hold downs, 60 strokes per minute, electronic stroke counter, 9-station digital 1M programmable backgauge, CNC pre-select controls, light beam shearing, 10 HP motor, s/n 25601214.

MILLS
Auction Inventory Photo

PROMILL Mill, 48" T-slot table, 60–4,200 RPM, 3 HP motor, Sony DRO, AL-300S auto. feed, s/n N/A.

CHEVALIER PM-3VS Mill, 48" T-slot table, 60–4,500 RPM, 3 HP motor, Sony DRO, servo auto. feed, s/n BM869301.

SAWS
Auction Inventory Photo

HYDMECH S-20A Series II Horizontal Bandsaw, auto. clamping, 13 x 18", 3 HP motor, 29" stroke, s/n 80599651.

LETEN LCM-400A Vertical Bandsaw, 16" cap., 3 HP motor, s/n 4005.

CORNER NOTCHER
Auction Inventory Photo

1982 AMADA CS-220 Corner Notcher, 10-ton cap., 7/8" ram stroke 1/8" thickness cap., s/n 544304.

GRINDERS
Auction Inventory Photo

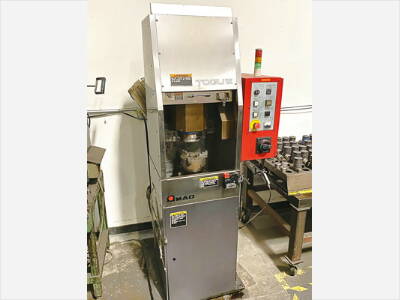

2005 AMADA Togu-III Automatic Punch and Die Grinder, 6" 3-jaw chuck, coolant system, auto. lube, s/n N/A.

STRIPPIT Punch and Die Grinder.

HARIG 618 Automatic Grinder, Walker magnetic chuck, s/n N/A.

BELT SANDER

TIMESAVERS 137-1HDMW Belt Sander, 37" x 60", 0–8" thickness cap., 20 HP motor, 14–45 variable speed FPM, s/n 26308M.

ROLLS

ROPER WHITNEY Pexto 3418H Material Rolls, 16-gauge soft steel cap., 4', s/n 575 9 95.

ROLLING STOCK
Auction Inventory Photo

2013 ISUZU NPR HD Box Truck, 16' cargo bed, dually tires, 5.2l engine, AC/heat, AM/FM/CD, VIN 54DC4W1B8ES800248.

Auction Inventory Photo

YALE GLC050RGNUAE084 Forklift, 5,000-lb. cap., solid tires, 42" forks, 2-stage mast, tilt, 162 hours, s/n E187V11469W.

YALE GLP030AFNUAE084 Forklift, 3,000-lb. cap., solid tires, 42" forks, 2-stage mast, tilt, side shift, 3,260 hours, s/n, A810N05497X.

YALE GLC050VXNVSE083 Forklift, 5,000-lb. cap., cushion tires, 42" forks, 2-stage mast, tilt, 6,878 hours, s/n A910V04079C.

SNORKEL Wildcat SL-20 Scissor Lift, 20' platform height, electric, 800-lb. cap., 32" wide deck, s/n N/A.

POWER BOSS Phoenix 28 Floor Polisher, s/n N/A.

2016 FORD Transit 350 Sprinter Van, w/approx. 106,000 miles, VIN 1FTBW3XG5GKA25924.

COMPRESSORS/AIR DRYERS
Auction Inventory Photo

2015 ATLAS COPCO GA7FF Rotary Screw Compressor, 15 HP motor, 30-gallon tank, built-in air dryer, 128 PSIG, s/n CAI72194.

Auction Inventory Photo

2000 ATLAS COPCO GA45 Compressor, 60 HP motor, 132 PSIG, 260 CFM, s/n AII 365683.

Auction Inventory Photo

2017 ATLAS COPCO FD 120 Air Dryer, s/n ITJ027373.

CMM'S
Auction Inventory Photo

FARO Arm IG-10 Portable CMM, s/n N/A.

MITUTOYO 196-448 CMM, s/n BF000043.

TOOLING/OTHER
Auction Inventory Photo

Auction Inventory Photo

Punch Tooling, Punch Tooling Racks, Press Brake Dies, Press Brake Die Racks, Tool Boxes, Misc. Endmills, Flex Collets, Drill Bits, Reamers, Carbide Inserts, Slitting Saws, Misc. Taps, C-Clamps, KANT Twist Clamps, CAT-40 Tooling, Welding Tables, Acorn Tables, Angle Plates, KURT Vises, Arbor Presses, Parallel Sets, Granite Surface Plates, Height Gages, MITUTOYO Digital Calipers, Pin Gages, Plug Gages, Pallet Racks, Shop Carts, Shop Tables, Welding Rod, Man Lift, Oxygen and Acetylene Tanks, Shop Cabinets, Down Draft Table, Shop Mats, Belt Sanders, Misc. Hand Tools, Misc. Electric Hand Tools, Pneumatic Tools, Pallet Jacks, Office Furniture and More!
