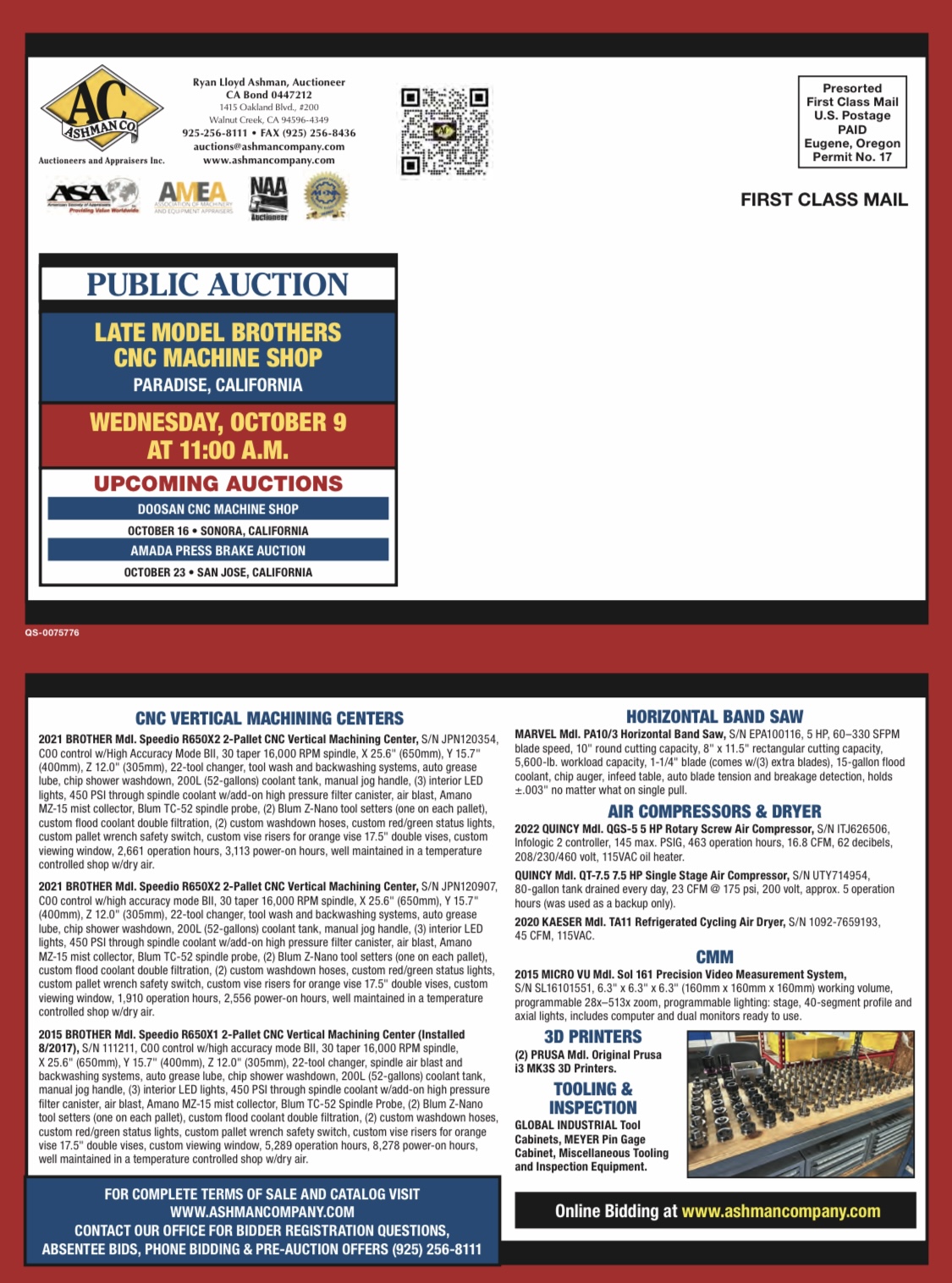

LATE MODEL BROTHERS CNC MACHINE SHOP

Location: Paradise, CA

Date: October TBD

CNC VERTICAL MACHINING CENTERS

2021 Brother Mdl. Speedio R650X2 2-Pallet CNC Vertical Machining Center, s/n JPN120354, C00 Control with High Accuracy Mode BII, 30 Taper 16,000 RPM spindle, X 25.6" (650mm) Y 15.7" (400mm) Z 12.0" (305mm), 22 tool changer, Tool Wash and Backwashing Systems, Auto Grease Lube, Chip Shower Washdown, 200L (52 gallons) Coolant Tank, Manual Jog Handle, (3) Interior LED Lights, 450psi Through Spindle Coolant with add-on High Pressure Filter Canister, Air Blast, Amano MZ-15 Mist Collector, Blum TC-52 Spindle Probe, (2) Blum Z-Nano Tool Setters (One on each pallet), Custom Flood Coolant Double Filtration, (2) Custom Washdown Hoses, Custom Red/Green Status Lights, Custom Pallet Wrench Safety Switch, Custom Vise Risers for Orange Vise 17.5" Double Vises, Custom Viewing Window, 2661 Operation Hours, 3113 Power-On Hours, Well Maintained in Temperature Controlled Shop with Dry Air

2021 Brother Mdl. Speedio R650X2 2-Pallet CNC Vertical Machining Center, s/n JPN120907, C00 Control with High Accuracy Mode BII, 30 Taper 16,000 RPM spindle, X 25.6" (650mm) Y 15.7" (400mm) Z 12.0" (305mm), 22 tool changer, Tool Wash and Backwashing Systems, Auto Grease Lube, Chip Shower Washdown, 200L (52 gallons) Coolant Tank, Manual Jog Handle, (3) Interior LED Lights, 450psi Through Spindle Coolant with add-on High Pressure Filter Canister, Air Blast, Amano MZ-15 Mist Collector, Blum TC-52 Spindle Probe, (2) Blum Z-Nano Tool Setters (One on each pallet), Custom Flood Coolant Double Filtration, (2) Custom Washdown Hoses, Custom Red/Green Status Lights, Custom Pallet Wrench Safety Switch, Custom Vise Risers for Orange Vise 17.5" Double Vises, Custom Viewing Window, 1910 Operation Hours, 2556 Power-On Hours, Well Maintained in Temperature Controlled Shop with Dry Air

2015 (Installed 8/2017) Brother Mdl. Speedio R650X1 2-Pallet CNC Vertical Machining Center, s/n 111211, C00 Control with High Accuracy Mode BII, 30 Taper 16,000 RPM spindle, X 25.6" (650mm) Y 15.7" (400mm) Z 12.0" (305mm), 22 tool changer, Spindle air blast and Backwashing systems, Auto Grease Lube, Chip Shower Washdown, 200L (52 gallons) Coolant Tank, Manual Jog Handle, (3) Interior LED Lights, 450psi Through Spindle Coolant with add-on High Pressure Filter Canister, Air Blast, Amano MZ-15 Mist Collector, Blum TC-52 Spindle Probe, (2) Blum Z-Nano Tool Setters (One on each pallet), Custom Flood Coolant Double Filtration, (2) Custom Washdown Hoses, Custom Red/Green Status Lights, Custom Pallet Wrench Safety Switch, Custom Vise Risers for Orange Vise 17.5" Double Vises, Custom Viewing Window, 5289 Operation Hours, 8278 Power-On Hours, Well Maintained in Temperature Controlled Shop with Dry Air

HORIZONTAL BAND SAW

Marvel Mdl. PA10/3 Horizontal Band Saw, s/n EPA100116, 5 H.P, 60-330 SFPM Blade Speed, 10” Round Cutting Capacity, 8” x 11.5” Rectangular Cutting Capacity, 5,600 Lbs Work Load Capacity, 1-1/4" Blade (comes with 3 extra blades), 15 Gallon Flood Coolant, Chip Auger, Infeed Table, Auto Blade Tension and Breakage Detection, Holds +/-.003" no matter what on single pulls

AIR COMPRESSORS & DRYER

2022 Quincy Mdl. QGS-5, 5 H.P. Rotary Screw Air Compressor, s/n ITJ626506, Infologic2 Controller, 145 Max PSIG, 463 Operation Hours, 16.8 CFM, 62 Decibels, 208/230/460V, 115VAC Oil Heater

Quincy Mdl. QT-7.5, 7.5 H.P. Single Stage Air Compressor, s/n UTY714954, 80 Gallon Tank drained every day, 23 CFM @ 175 psi, 200V, Approximately 5 Operation Hours (was used as a backup only)

2020 Kaeser Mdl. TA11 Refrigerated Air Dryer, Cycling, s/n 1092 - 7659193, 45 CFM, 115VAC

VMM

2015 Micro Vu Mdl. Sol 161 Precision Video Measurement System, s/n SL16101551, 6.3" x 6.3" x 6.3" (160mm x 160mm x 160mm) Working Volume, Programmable 28x - 513x Zoom, Programmable Lighting: Stage, 40 Segment Profile and Axial Lights, Comes with computer and dual monitors ready to use

3D PRINTERS

(2) Prusa Mdl. Original Prusa i3 MK3s 3D Printers

TOOLING

INSPECTION
