Late Model LVD/Strippit CNC Fabrication Facility

Mar 24, 2015 7:00 AM

1415 Oakland Blvd. #200, Walnut Creek, CA, 94596;
Auction Type: Absolute Auction

Description of Property:

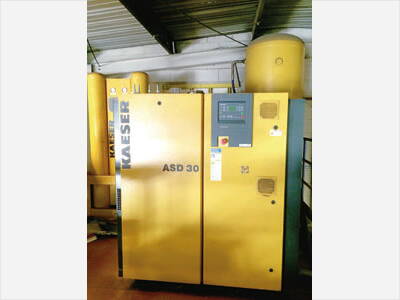

LVD 4,000 Watt CNC Laser, (2) LVD CNC Press Brakes, Cincinnati CNC Vertical Machining Center, Strippit CNC Turret Punch, (3) Pemserter Insertion Presses, Daewoo Forklift, Timesaver Grainer, Media Tumbler, Kaeser Air Compressor & Dryer, Perishable Tooling, Support Equipment, and Inspection

Description:

CNC LASER
Auction Inventory Photo

2003 LVD STRIPPIT Laser Cutter, Mdl. Axel 3015, GE Fanuc 160i-L control, GE Fanuc laser C4000 Mdl. E, 4 kW max. capacity, 14,000 max. weight, 5,000 KG material table, Thermotec chiller, Donaldson Torrit DCE dust collector, vacuum material mover, 5' x 10' table, 5"–7.5" lens capacity, 12-station material tower, s/n 28871.

CNC VERTICAL MACHINING CENTER
Auction Inventory Photo

1997 CINCINNATI Milacron Arrow 750 Vertical Machining Center, Mdl. ERO, Cincinnati Milacron Acramatic 2100 control, 21-tool holder turret, Cat No.40 spindle taper, 60–8,000 RPM spindle, 21-tool changer capacity, s/n AOA 97 0866.

CNC PRESS BRAKES
Auction Inventory Photo

2003 LVD STRIPPIT PPEB 90/08, Mdl. 90 BH 08 Cadman CNC, 90-tons, 96" overall length of bed and ram, 80" distance between housings, 15.7" open height, 15.7" throat depth, 307 IPM approach pressing speed, 320 IPM return pressing speed, equipped w/LVD Cadman 4-axis, control, LVD 4-axis back gauge, programmable crowning, adjustable stroke, RS-232 port, infinite pressure adjustment, programmable tonnage control, pedestal palm button station, electric foot switch, auto. hydraulic clamping, 6-axis, s/n 27339.

Auction Inventory Photo

2001 LVD STRIPPIT PPEB 90/08, Mdl. 90 BH 08 Cadman CNC, 90-tons, 96" overall length of bed and ram, 80" distance between housings, 15.7" open height, 15.7" throat depth, 307 IPM approach pressing speed, 320 IPM return pressing speed, equipped w/LVD Cadman 4-axis control, LVD 4-axis backgauge, programmable crowning, adjustable stroke, RS-232 port, infinite pressure adjustment, programmable tonnage control, pedestal palm button station, electric foot switch, s/n 27249.

CNC TURRET PUNCH PRESS
Auction Inventory Photo

1993 STRIPPIT Fabri-Center 1000 R Turret Punch Press, Mdl. FC 1000 R, 20-ton punching capacity, dual auto. index stations, s/n 202052793.

INSERTION PRESSES
Auction Inventory Photo

(2) 2000 PEMSERTER Series 2000 Pneumatic Press, Mdl. 2000A, 400– 16,000-lb. ram force, 24" throat depth, touch screen, foot control, 115 volts, phase 1, 4 amp, s/n 2017A-643 and 2017A-577.

Auction Inventory Photo

1994 PEMSERTER Series 4 Manual Press, Mdl. F, 1,000–12,000 ram force, 6-ton capacity, foot control, s/n H4-1894.

PEMSERTER Series 4 Manual Press, Mdl. PS-4, 1,000–12,000 ram force, 6-ton capacity, foot control, s/n F4-1239.

Contact Information:

Contact: Ryan Ashman
Company: Ashman Company Auctioneers & Appraisers
Address: 1415 Oakland Blvd. #200, Walnut Creek, CA 94596
Phone: (925) 256-8111

Payment Terms:
Cash, cashier’s check, wire transfer or business check accompanied by a bank letter. FULL SETTLEMENT TO BE MADE DAY OF SALE. All sales are final and are payable at the conclusion of the sale. A buyer’s premium and sales tax will be charged on all purchases.

Auction Item Removal:
Cost, responsibility, and risk of removal of purchases remain with the purchaser. It is the purchaser’s responsibility to restore/repair all real or personal property that is altered or damaged as a result of the removal. Purchases must be removed from the premises in the time allocated as announced and/or posted by the Auctioneers. Ashman Company reserves the right to charge the purchaser for the costs of storage and/or disposal beyond the removal period. Items not picked up in the time allocated will be considered abandoned. NO purchases may be removed until after the conclusion of the sale. No claims of any kind shall be allowed for any item not removed or after an item has been removed by the purchaser.
