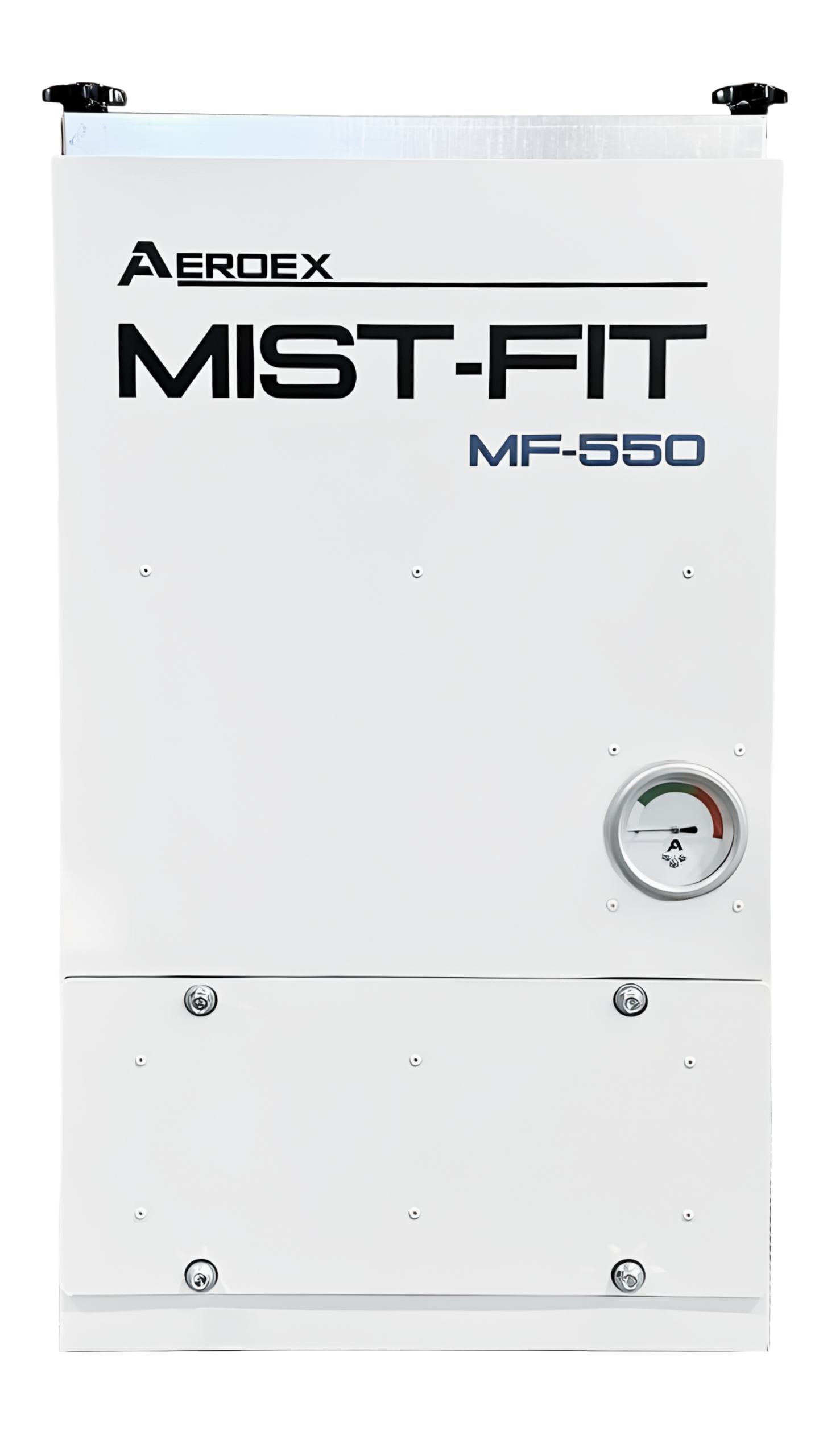

Aeroex Mist-Fit MF-550 Mist Collector
Contact us for pricing
Compact 500-600 CFM mist collector for CNC machining environments and machine enclosures up to 250 cubic feet.
Contact us for current pricing, available configurations, mounting options, and a written quote.
Description
Choose Your Mist-Fit Model
The Aeroex Mist-Fit MF-550 is a compact industrial mist collector for modern CNC machining environments. Its progressive multi-stage filtration captures coolant mist, oil mist, smoke, and fine airborne particles while maintaining a small 14.9-inch-square footprint.
Air Flow
500-600 CFM
Recommended Volume
Up to 250 ft³
Motor
0.75 hp
Best For
Compact CNC machines
Technical Specifications
| Air flow | 500-600 CFM |
|---|---|
| Recommended enclosure | Up to 250 cubic feet |
| Motor | 0.75 hp |
| Voltage options | 115/1/60, 220/1/60, 230/3/60, or 460/3/60 |
| Inlet connection | 6-inch diameter |
| Sound level | 68 dB(A) |
| Coolant pressure range | 30-3000 psi |
| Oil pressure range | 30-2000 psi |
| pH range | 5.8-9.8 |
| Maximum temperature | 125 degrees F / 50 degrees C |
| Weight | 57 lb |
| Dimensions (L x W x H) | 14.9 x 14.9 x 27.4 inches |
| HEPA filtration | Optional |
Progressive Multi-Stage Filtration
- Mechanical element: separates the largest mist droplets and swarf so collected fluid can drain back toward the machine sump.
- Demister element: supports the first stage with a washable separation layer.
- MERV 15 fibre-bed filter: depth-loads fine mist and smoke particles for long service life.
- Optional HEPA stage: available when the application requires additional sub-micron filtration.
Mounting and Installation Options
Ashman Company can help select the collector configuration and mounting arrangement for the machine enclosure and available shop space.
- Direct machine mounting
- Wall mount
- Side mount
- Suspension kit
- Pedestal or offset pedestal
- Adjustable floor stand
- 11-inch stand and machine-specific base plates
Available Configurations
- 115 V single-phase, 220 V single-phase, 230 V three-phase, and 460 V three-phase electrical configurations
- Optional HEPA and combination HEPA/carbon filtration
- Alternative inlet and base-plate arrangements
- Suction hose, hoods, and machine-specific mounting hardware
Final configuration, electrical requirements, mounting hardware, freight, and installation requirements will be confirmed during quotation.
