Date: Tuesday, February 21 2017 1088:00 PM

1415 Oakland Blvd. #200, Walnut Creek, CA, 94596

Auction Type: Absolute Auction

Description of Property:

1997 Daewoo Puma 12L-C CNC Lathe, (2) 2005 Hwacheon HI- Tech 200 CI CNC Lathe, 1998 Hwacheon HI-ECO-35 CNC Lathe, 2007 Haas VF-5B-40XT Vertical CNC Machining Center, Haas TR-210 5-Axis Articulating Trunnion Unit, 2006 Kent LA-30-120 Gap Bed Engine Lathe, Bridgeport Milling Machine, Mitutoyo Bright Apex CMM w/Reinshaw PH-9 Touch Probe, 1994 Palatek Rotary Screw Air Compressor 50 HP

CNC TURNING LATHES

1997 DAEWOO CNC Lathe, Mdl. Puma 12L-C, s/n PL-12 1168, Fanuc Series 18-T CNC control, 12-station tool turret, programmable tailstock, 15" 3-jaw chuck, 30 HP machine, 20–2,000 variable speed spindle, 40.2" max. turning length, 19" max. turning diameter, machine travels: X-10.2", Z-41.3", 10" turbo chip conveyor, foot control, tool presetter.

1998 HWACHEON CNC Lathe, Mdl. HI-ECO-35, s/n MO63346J7W-A, Fanuc Series 18-T CNC control, 10-station tool turret, programmable tailstock, 12" 3-jaw chuck, 30 HP machine, 20–2,500 variable speed spindle, 30" max. turning length, 16.6" max. turning diameter, 3.5" bar capacity, tool presetter, 10" turbo chip conveyor, foot control.

2005 HWACHEON CNC Lathe, Mdl. Hi-Tech 200 CI, s/n MO17353DIFN, Fanuc Series 0i-TB CNC control, 10-station tool turret, tailstock, 10" 3-jaw chuck, 20 HP machine, 30–5,000 variable speed spindle, 13.8" max. turning diameter, 15.7" max. turning length, 2" bar capacity, machine travels: X-7.7", Z-16.9", 10" turbo chip conveyor, foot control.

2005 HWACHEON CNC Lathe, Mdl. Hi-Tech 200 AI, s/n MO13353CIFE, Fanuc Series Oi-TB CNC control, 10-station tool turret, tailstock, 8" 3-jaw chuck, 20 HP machine, 30–5,000 variable speed spindle, 13.8" max. turning diameter, 15.7 max. turning length, 2" bar capacity, machine travels: X-7.7", Z-16.9".

MORI SEIKI CNC Lathe, Mdl. SL-25 B5, s/n 493, Fanuc 10T CNC control, 10-station tool turret, tool presetter, 20.86" max. turning length, 10.7" max. diameter, 35–3,500 variable speed spindle, machine travels: X-160mm, Z-590mm, 10" 3-jaw chuck, foot control.

VERTICAL CNC MACHINING CENTERS

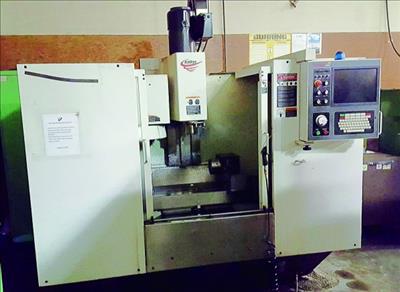

2007 HAAS CNC Machining Center, Mdl. VF-5B-40 XT, s/n 1055464, 32-bit Haas CNC control, 30 HP spindle, 10,000 RPM spindle, thru spindle coolant, Cat 40 taper spindle, 24-station ATC, machine travels: X-60", Y-26", Z-25", 23" x 62" T-slot table, high/low speed gear box, Haas 5-axis Mdl. TR-210 Trunnion

Contact Information:

Contact: Ryan Ashman

Company: Ashman Company Auctioneers & Appraisers

Address: 1415 Oakland Blvd. #200, Walnut Creek, CA 94596

Phone: (925) 256-8111
